You can find our best models in dev branch, models/yolo-object-lane-unfroze/weights/.

Training a Yolo Object detection model, with Lane detection (segmentation) as well.

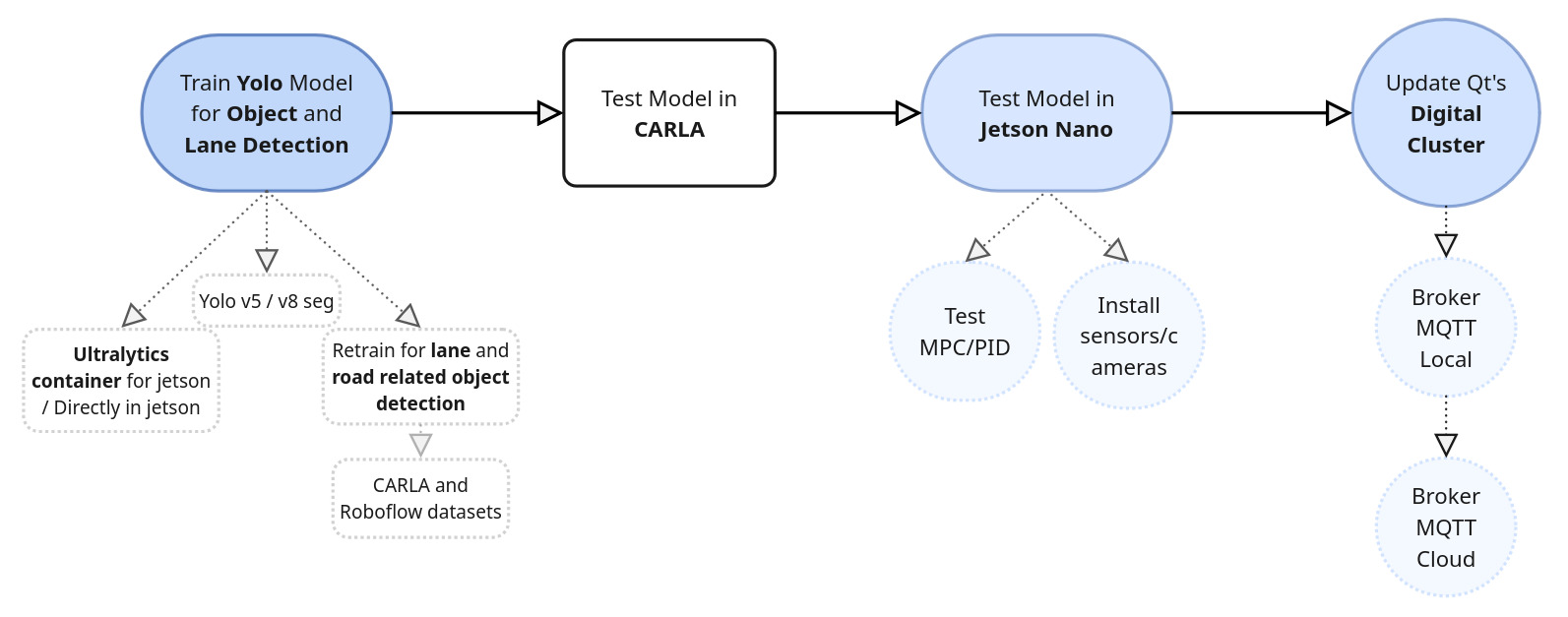

Project Structure

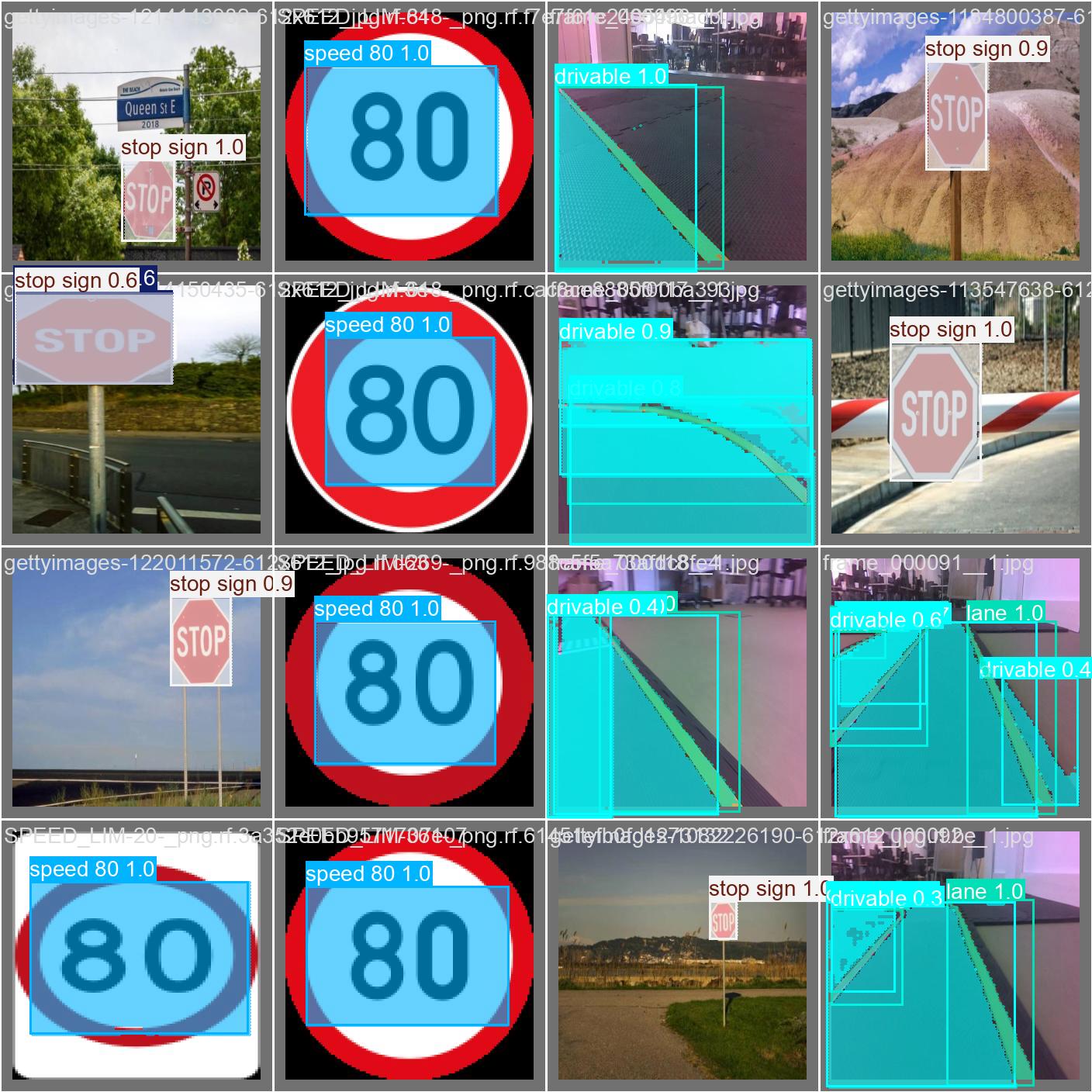

Inference Result

Results

Datasets

You can download our dataset here: Click to access our dataset.

For lane and drivable area detection, we took some images of our lab and also used the bdd10k dataset. For the objects, we downloaded some datasets from Roboflow.

I noticed a decay of object detection outside the objects of my dataset, despite the fact that i froze the backbone and lowered the learning rate. So you might need to add some object images to preserve more information.

Roboflow

To create the masks of our lab images, we used Roboflow to generate the annotations, then we added blur, noise and grayscale to the images and resized them to 320x320, keeping aspect ratio. After this, we downloaded to COCO segmentation format. This creates a Json file with all the annotations. So, in scripts/json_txt.py we convert these annotations, that have the polygons of the lanes into binary masks, so we can then convert them back to normalized polygons and save them to a txt file. We tried to convert the COCO polygons directly to yolo-seg txt format but we noticed some weird values and loss of information. Therefore, converting first to binary masks helped preserve the lane shape.

We downloaded a few Roboflow datasets of road objects, such as the traffic lights, the stop, speed, danger and cross walk signs. We then used scripts/remap_polygons.py to reorder the labels to match our project and scripts/bbox_seg.py to transform them into segmentation labels, since this is a segmentation model.

Creating Annotations

In the scripts directory file create_annotations.py we create the annotation labels for lane and object detection. How do we do this? We pass our images through a pre-trained Yolo11-seg model, to get the object polygons. Then, we use supervision tools to convert the lane binary masks to valid Yolo polygons. Finaly, we merge the object and lane annotations and get the label files.

Be attentive towards the size of the images and masks, we decided to keep the images square, (training and testing), for compatibility. In the scripts directory, file resize.py you can resize images with letterboxing (keeping aspect ratio), or not.

In these scripts, you might need to change some function parameters, the original size of the images, and the paths to the images, so that it correctly links to your dataset and original size of your images.

For debugging, you can visualize the annotations in scripts/visual_annotations.py.

Training and Testing

In training.py (scripts directory) where we are retraining our model, we set the augmentations to None since it disrupts our images, and add other augmentations that dont disrupt them, such as brightness, saturation and hue. After the first training where we freeze the backbone, you train again to unfreeze everything.

For testing, (in scripts/testing.py), we call our trained model and set it to predict, to test the prediction of a given validation image.

For debugging we added scripts/count_labels.py that outputs how many annotations we have for each class id.

Jetson Nano

YOLO Inference on Jetson Nano – Performance Improvements and Benchmarks

This project documents the key improvements and testing results when running various versions of YOLO on the Jetson Nano. The main goal was to maximize the inference speed (FPS) while using limited hardware resources.

Key Improvements

1. Upgrading to Ubuntu 20.04

To unlock better compatibility and performance, the default OS was upgraded to Ubuntu 20.04, following this image and guide by Qengineering:

👉 Qengineering Jetson Nano Ubuntu 20.04 Image

This enabled smoother installation of recent dependencies, CUDA support, and improved system stability.

2. Converting YOLO to TensorRT

The second major improvement was converting YOLO models to TensorRT using the tensorrtx repository:

👉 Tensorrtx YOLOv5 Conversion (v7.0)

By doing so, we achieved significantly higher inference performance using the Jetson's GPU and Tensor cores, particularly with small and segmentation models.

Benchmark Results

Environment	YOLO Version	Frames/s	Type cam	Framework
Container Ultralytics (Jetson nano 18.04)	v11 nano	6.94	USB	Pytorch
Container Ultralytics (Jetson nano 18.04)	v8 nano	12.66	USB	Pytorch
Jetson nano Ubuntu 20.04	v11 nano	12.05	USB	Pytorch
Jetson nano Ubuntu 20.04	v8 nano	14.08	USB	Pytorch
Jetson nano Ubuntu 20.04	v8 nano	15.47	CSI	Pytorch
Jetson nano Ubuntu 20.04	v5 small	47	CSI	CPP and TensorRT
Jetson nano Ubuntu 20.04	v5 small seg	37	CSI	CPP and TensorRT
Jetson nano Ubuntu 20.04	v8 nano seg	57	Images	CPP and TensorRT

Summary

Upgrading to Ubuntu 20.04 greatly improved system support and performance.
Converting models to TensorRT delivered 3x to 4x speedup in FPS.
The best result was with YOLOv8 nano segmentation (TensorRT) at 57 FPS using preloaded images.
CSI cameras outperform USB in most live camera inference scenarios.

Recommendations

For maximum performance: use TensorRT + CSI camera.
For segmentation tasks: consider using YOLOv5 or v8 nano models with tensorrtx.
Avoid using Docker unless strictly needed, as native Ubuntu 20.04 offers better access to CUDA/TensorRT features.
